P6mm P8mm P10mm outdoor SMD3535 high brightness led display with Magnesium aluminum cabinets style super lightweight and energy cost saving:
SMD3535 Outdoor Multiple Waterproof Designs High-contrast
1.Matte encapsulation technology, no mirror effect, improves contrast.
2. White frame improves brightness. Dark matte encapsulation technology restrains mirror effect.
3.High frame with low pins, flexible for glue-filling and covering.
LED Modules:
LED Cabinets:
Super lightweight Magnesium aluminium die casting cabients
LED display details: Use in outdoor advertising display, or events concerts show
Product Description
outdoor full color led display
Affordable idea display solution for our clients.Various purposes such as for sports,events,and conventions, require flexibit,effective messaging systems.
According to the using purpose ,the products be classified to stadium LED display,advertising LED display,stage LED Display,curtain LED Display,mobile LED Display,flexible LED Display.rental LED Display. Series already perform well in advertising,big celebration in China. And exported to Asia, Europe, South America, North America, Africa and Middle East and other regions.
outdoor full color led display Special advantage:
1.LEDs. we select super led tips with high brightness, broad viewing angle(H140degree, V140degree), all the LEDs are ageing for 72 hours before assembly,
when in modules, also aging for 72 hours, after assembly into a screen, still aging 72 hours. so the final LEDs are aging at least for 216 hours, up to 9 days.
2.Modules. we use SMD3535 3in1 pixel configuration to realise high brightness. you may find some lower price suppliers but also same brightness. if you note, maybe they use is not Nation star LEDs lamp, in this case, can cut down much cost but also cut down the life of the display. why? because to reach the same brightness and better waterproof, it is big square lamps from nation star unique design can do it. and our modules case is PVC, which is more durable and have a stronger ability in bask, anti-ultraviolet and Difficult to deformation than Plastic ones.
3.Cabinets. they are used in galvanized steel, or super lightweight Magnesium alumnium die casting cabinets, anti-salt, anticorrosive and waterproof.
4.Screen. use state-of-the-art LED drive IC-MBI5026, brightness can up to 8000cd/m2, live color video and vivid image with 256 grey level. for outdoor led displays, all of them are IP 65 and designed to withstand harsh environmental conditions, such as sun glare, heat, cold, and humidity. you can see more details in the quotation.
5.Packing: anti-shaking wooden case or road flight cases, which is lighter than normal wooden case but more protective to the goods.
6. Spare parts for free. our screen's scotoma rate is below 0.0002, but To prevent accidental, we provide some free spare parts according to
the size of screen.
7. Warranty for 5 years.
8. Technology support: we have full hardware and software files available for all you need, we are here to working for you.

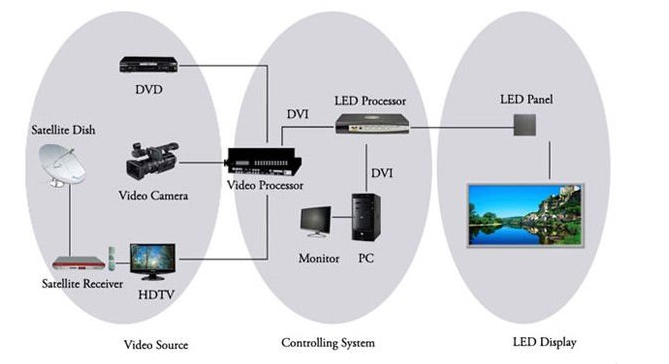

Control system Overview :
Specification:
| Specification | PH6 | PH8 | PH10 | PH12 | PH16 | PH20 |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Density of pixel | 1/8 scan | 1/4 scan | 1/4 scan | 1/4 scan | Static | Static |
| Module Resolution | 32*16(W*H) | 32*16(W*H) | 16*16(W*H) | 16*16(W*H) | 16*8(W*H) | 16*8(W*H) |
| Pixel density | 27777 | 15625 | 10000 | 6400 | 3906 | 2500 |
| Pixel Pitch | 6mm | 8mm | 10mm | 12mm | 16mm | 20mm |
| Best Viewing Distance | 6~12m | 6~12m | 8~15m | 10~20mm | 12~24mm | 16~30m |
| Module Size(mm) | 192*192 | 320*160 | 160*160 | 192*192 | 256*128 | 320*160 |
| Cabinet Size(mm) | 576*576 | 768*768 | 960*960 | 960*960 | 1024*1024 | 960*960 |
| Weight | 25Kg | 25Kg | 25Kg | 25Kg | 27Kg | 25Kg |
| Working Voltage | AC220/110 ± 10%, 47~63Hz |
| Waterproof Rate | IP65 |
| Maxim Power | ≤780W |
| Average Power | ≤450W |
| Viewing Angle | Horizontal:≥ 140° Vertical:≥140° |
| Brightness | ≥7500 nits |
| Working Temperature | -30ºC to +60ºC |
| Operating humidity | 20% to 90% |
| Lifespan (50% Brightness) | 100,000 hours |
Case:
