Huge led screen 140°/120° DIY LED Display SMD 3535 RGB 5050 waterproof P4 P4.81 P5 P6
Product features
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC,together with with the multi-circuit structure,achieves evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Application scopes
Widely applied to traffic information distribution of station,quay and airport,conference,shopping mall,brand presentation,TV station,stage show,concert, stadium display screen and so on.
| Items | Parameter |
| Pixel Pitch | PH6mm | PH8mm | PH10mm |
| LED Encapsulation | White SMD 3535 | White SMD 3535 | White SMD 3535 |
| Module Resolution(W*H) | 32*32 | 32*16 | 32*16 |
| Pixel Density | 27777 Pixel/ ㎡ | 15625 Pixel/㎡ | 10000 Pixel/㎡ |
| Driving Method | 1/4 Scan | 1/4 Scan | 1/2 Scan |
| Refresh Frequency | ≥1920Hz (Support High refresh rate, depand on the system configuration) |
| Driver IC | Special constant current IC with height refresh rate & height grey scale |
| Grey Scale | 14Bit(depending on zhe system and IC configuration) |
| Module Size | 192*192 | 256*128 | 320*160 |
| White balance Brightness | 8500cd/㎡ | 7500cd/ ㎡ | 6500cd/㎡ |
| Color Temperature | 8000K±500 (adjustable) |
| Viewing Angle | Horizontal 130°Vetical 100° |
| Optimal Viewing Distance | ＞6m | ＞8m | ＞10m |
| Working Voltage | DC4.2V |
| Max Power Consumption/per module | 30W/PCS | 30W/PCS | 30W/PCS |
| Avg. Power Consumption/per module | 15W/PCS | 15W/PCS | 15W/PCS |
| Lifetime | 50000hours |
| Operating Temperature | –10℃ ～ 65℃ |
| Net weight | 0.50Kg/pcs | 0.57Kg/pcs | 1Kg/pcs |

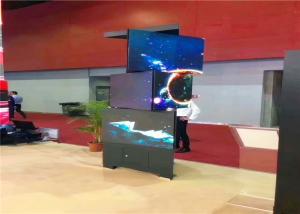

Outdoor standard cabinet SMD is featured product in Luxon. The biggest features of this kind product is that it can be arbitrarily spliced as clients want.
Because of this specialty, the construction of this cabinet is not fixed.
