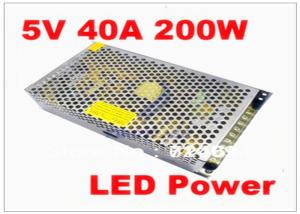

MEANWell 200W 5V 40A Ultra Thin waterproof led power supply for SMD DIP LED Module full color
MEANWell LRS-200-5 5V40A Ultra Thin LED Power Supply For Rental LED Display Screen
MEANWell LRS-200-5 LED Switch Power Supply LRS-350-5 LED Switch Power System For LED Display Panel
5V 40A 200W
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC Fan with fan speed control function
1U low profile 30mm
LED indicator for power on
2 years warranty
UL passed
Case:806 Size:215×115×30mm
AC input voltage range---------88-132VAC/ 176-264VAC selected by switch
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Forced air cooing by built-in DC fan
Remarks:
1: All brands items are from Factory. Quality guarantee. Factory Price.
2: All products listed in our store are in stock. when you have placed the order, we will do shipping in 1 -2 business days.
3: We partners with DHL, UPS, Fedex and EMS. will choose best shipping methods for you depend on your location of your country.
4: During the first week after you have received the package,If there is any broken items in the package, take a image of those items to us, we will offer Replacement to you.Shipping Fee paid by the buyer and seller Each half.
Meanwell NEL-300-5 Ultra-thin Power Supplier For Rental LED Display Screen
Meanwell NEL-300-5 Ultra-thin Power Supplier For rental led display Screen
Features:
Ultra-thin:30mm
Low cost,high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Power: 300W
Case:806 Size:215×115×30mm
AC input voltage range---------88-132VAC/ 176-264VAC selected by switch
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,60A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection
Remarks:
1: All brands items are from Factory. Quality guarantee. Factory Price.
2: All products listed in our store are in stock. when you have placed the order, we will do shipping in 1 -2 business days.
3: We partners with DHL, UPS, Fedex and EMS. will choose best shipping methods for you depend on your location of your country.
4: During the first week after you have received the package,If there is any broken items in the package, take a image of those items to us, we will offer Replacement to you.Shipping Fee paid by the buyer and seller Each half.

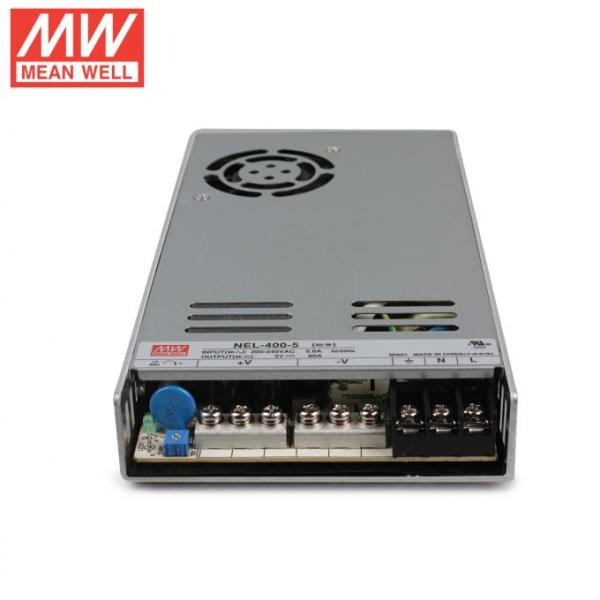

MEANWell NEL-400-5 LED Switching Power Supply For LED Display Screen and LED Control Card
MEANWell NEL-400-5 LED Swithing Power Supply For led display screen and LED Control Card
5V 80A 400W
ACinput 180-264 VAC
Protections: Short Circuit / Overload / Over Voltage / Over temperature
Leakage current < 1mA
Forced air cooing by built-in DC fan
Low profile: 30mm
Withstand 300VAC surge input for 5 second
LED indicator for power on
Conformal coating
Low cost, high reliability
100% full load burn-in test
2 Year warranty
UL passed
Case:806 Size:215×115×30mm
AC input voltage range---------88-132VAC/ 176-264VAC selected by switch
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Forced air cooing by built-in DC fan
Remarks:
1: All brands items are from Factory. Quality guarantee. Factory Price.
2: All products listed in our store are in stock. when you have placed the order, we will do shipping in 1 -2 business days.
3: We partners with DHL, UPS, Fedex and EMS. will choose best shipping methods for you depend on your location of your country.
4: During the first week after you have received the package,If there is any broken items in the package, take a image of those items to us, we will offer Replacement to you.Shipping Fee paid by the buyer and seller Each half.
