Name: Video Screen Rental Transparent P3 Indoor LED Advertising Display Board 576mm576mm Cabinet
Brand: Viso
Price: 1 USD

Brand Name : Viso

Model Number : PH3

Certification : UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin : China

MOQ : 1 Square Meter

Price : Negotiation

Payment Terms : L/C T/T Western Union Paypal Credit Card, MoneyGram, VISA

Supply Ability : 6,000 square meters per month

Delivery Time : 4-6 work days

Packaging Details : Wooden box or Flight case

module size : 192mm× 192mm

Pixel density : 11,1111 dots / sqm

Module : 64 dots × 64 dots

Pixel configuration : 1Red 1Green 1Blue

LED lamp type : SMD2121

CabineColor scalet : 576mm×576mm

Color scale : 65,536 degree

Contact Now

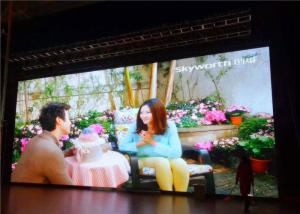

Transparent P3 Indoor LED Advertising Display Board 576mm×576mm Cabinet

Specification:

Model	P3 LED display for rental indoor
Pixel pitch	3mm
Pixel density	11,1111 dots / sqm
Module size(W*H)	192 mm(width)×192 mm(height)
Module pixels(W*H)	64 dots×64 dots
Pixel configuration	1Red 1Green 1Blue
Drive mode	constant current driving 1 / 32 scan
LED lamp type	SMD2121
Cabinet size(W*H)	576mm×576mm
Color scale	65,536 degree
View angle(H/V)	140 / 120 degree
Brightness (White balance)	about 1300cd / sqm.
Power consumption(one cabinet)	Max:300W / cabinet , Average: 120W / cabinet
Inputting Voltage	86-264 VAC 47--63Hz
Net weight	10Kg / cabinet
Operating temperature	-30°C----+60°C
Operating humidity	10%—95%RH
Life time	≥100,000hours
MTBF	5,000 hours
Whole Display Flatness	≤0.5mm Juncture
Frame frequency	25-60 Hz / s
Refresh rate	≥2000Hz / s
Control distance	100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
LED control system	LINSN,Nova-star,Colorlight is selectable
Operating system	Windows Xp / Windows 7 / windows 8 /8.1 / windows 10
Protection grade	IP31
Maintenance way	Rear Access

Application:

Shopping Malls

Music Venues and Concerts

Big office

Theater and Arts

TV Shows

Car Shows

Video Screen Rental Transparent P3 Indoor LED Advertising Display Board 576mm×576mm Cabinet
